Wilo Jet HWJ Water-Supply Station Equipped with Hydraulic Accumulator


Water-Supply Unit Wilo Jet HWJ equipped by hydraulic accumulator

Wilo-Jet HWJ Self-Priming Water-Supply Station

Опросный лист для подбора насосов

скачать каталог (3,19 Mб)

seal

заказ оборудования

Application

Wilo-Jet HWJ self-priming water-supply stations are used for domestic water supply out of tanks, when the depth to water surface does not exceed 8 m.

Wilo-Jet HWJ automatic pump stations refer to installations with pump for water supply and pressure maintenance required by system.

A pump unit consists of a multi-stage self-priming pump that can supply deep water, a pressure relay and a pressure tank.

  • Watter supply system
  • Sprinkling
  • Irrigation
  • Pumping water from wells and out of deep placed tanks
Type key
Example:
HWJ 301 60L 1~
H System consisting of a pump and diaphragm pressure tank
WJ Wilo-Jet pumps
3 Nominal flow rate Q in m³/h at optimum efficiency
01 Number of pump stages
60L Tank volume
1~ Single-phase current, 1~220 V, 50 Hz

Technical Data
  • Stainless steel construction: rugged and corrosion-resistant
  • Suction head max. 8 m
  • Max. flow rate 4,5 m³/h
  • Built-in motor protection
  • Electric connection 1~ 220 V
  • Liquid temperature +5 °C to +35 °C
  • Max. operating pressure 6 bar

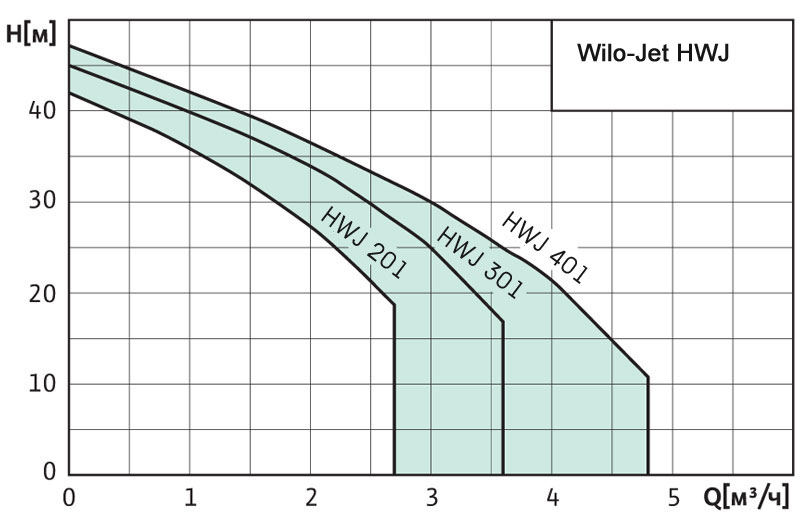

Wilo-Jet HWJ Model Range

Pump
Capacity
[kW]
Flow rate
[m³/h]
Head
[m]
Weight
[kg]
HWJ 201 1~
0,8
1,7
30
16,9
HWJ 301 1~
1,1
2,0
34
20,4
HWJ 401 1~
1,3
3,0
30
29,8
HWJ 301 60L 1~
1,1
2,0
34
25,2
HWJ 401 60L 1~
1,3
3,0
30
34,4

1~ single stage pump -220 V


Design and Operating Principle

Automatic pump unit (fig.) consists of surface centrifugal self-priming electric pump, hydraulic accumulator, pressure relay, pressure gauge and fitting kit. Electrical pump consists of a pump body and electric motor which are fixed on the adaptor flange.

  • Pump body comprise a housing made of cast iron or stainless steel, latten impeller and a build-in ejector.
  • The electric motor is an asynchronous motor of closed type with external ventilation. The junction box that is placed on the motor contains a capacitor and a connecting block to connect the motor with a power cable.
  • The hydraulic accumulator is aimed at accumulating water under pressure. It consists of a tank with a changeable membrane, made of food grade rubber, and a pneumatic valve for air injection.
  • The pressure relay is designed for automatic switching the pump on and off depending on water pressure in the system.
  • The pressure gauge is used for visual control over the pressure in the system.

Installation and Commissioning of Pump Stations

Before installation of electric pump (automatic pump station) it is necessary to choose a right place for it. It is recommended to install such a pump either indoors or outdoors on a horizontal platform, in a well-ventilated place that is also protected from rough weather conditions.

Design and the Way it Works


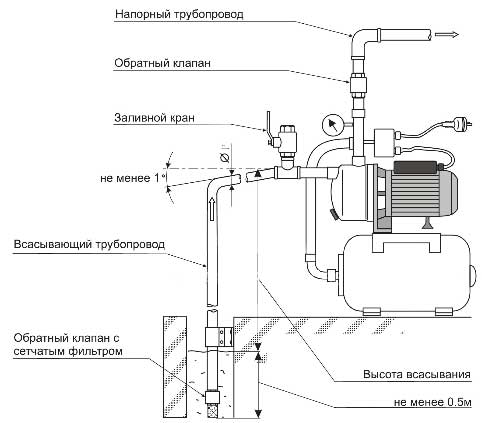

Automatic water supply from a well to a house by Wilo-Jet WJ self-priming centrifugal pump station

Automatic water supply from a well to a house by Wilo-Jet WJ self-priming centrifugal pump

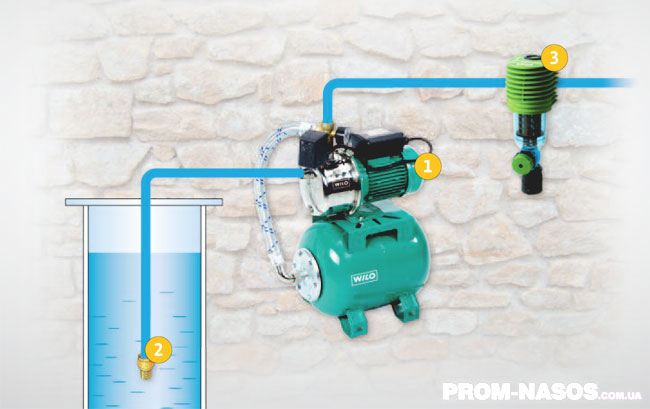

  1. HWJ pump station with WJ pump.
  2. Suction hose set
  3. Back-flush filter
