PKX Diaphragm Dosing Pumps


Мембранные насосы дозаторы PKX

PKX Dosing Pumps

скачать каталог (750 Kб)

заказ оборудования

Technical data:
  • Solenoid diaphragm dosing pumps with analogue economic control
  • Pumps are manufactured in compliance with CE standards
  • IP rating: IP65
  • Acid resistant plastic housing
  • Control panel protected by UV film
  • All PKX models are equipped with the heads of manual air relief valve
  • Installation options: wall mount/ horizontal mount
  • Compact mounting dimensions

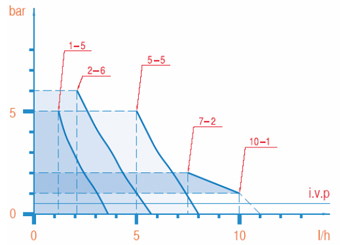

Performance Diagrams

Диаграммы производительности мембранных насосов дозаторов Etatron серии PKX

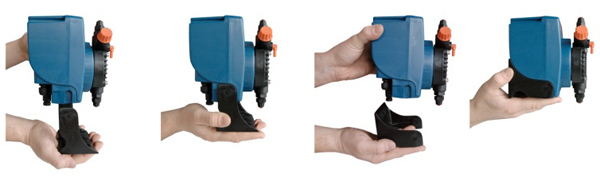

PKX PUMP TRANSFORMATION

ТРАНСФОРМАЦИЯ НАСОСА PKX

PKX pump transformation for wall and horizontal mount
press to enlarge



TECHNICAL DATA of PKX diaphragm dosing pumps

Pump type

MAX flow rate

Volume of impulse signal

Piston stroke

Power consumption

Net weight

l/hour bar ml mm W А kg

01-05

1

5

0.14

0.80

32

0.14

1.90

02-06

2

6

0.28

0.80

32

0.14

1.90

03-03

3

3

0.42

0.9

32

0.14

1.90

05-05

5

5

0.69

1.10

32

0.14

1.90

07-02

7

2

0.97

1.30

32

0.14

1.90

10-01

10

1

1.39

1.30

32

0.14

1.90

Note
Dosing pumps capacity is defined by testing pumps with by moderately hard water, under nominal pressure, lift height of 1.5 m, at room temperature.


MODEL CONFIGURATIONS

- MA/AL

  • Analogue diaphragm dosing pump
  • Constant ON/OFF dosing mode
  • Manual capacity adjustment: 0-100%
  • Support of level sensor (level sensor not included)



Мембранные насосы-дозаторы PKX-MA/AL

- CC/M

  • Dosing pump for proportional dosing from external 4-20 mA signal
  • Dosing mode: input signal 4 mA = 0%, 20 mA = 100% of pump capacity
  • Manual capacity adjustment: 0-100%
  • Support of level sensor (level sensor is not included)
Мембранные насосы-дозаторы PKX-CC/M

- FT/A

  • Dosing pump operated by impulse flow meter
  • Dosing mode: I - proportional 1x1: один принимаемый импульс от расходомера = одна инжекция насоса; II - 1x(0-60 сек.): один принимаемый импульс от расходомера = дозирование в интервале 0-60 сек.
  • Support of level sensor (level sensor is not included)
Мембранные насосы-дозаторы PKX-FT/A

- 2EV

  • Analogue diaphragm dosing pump
  • Constant ON/OFF dosing mode
  • Two independent ways of manual capacity adjustment  0-100% to be operated from two different magnetic valves
  • No support of level sensor
Мембранные насосы дозаторы PKX-2EV
