FMB series of hermetic pumps refers to single-stage magnetic-drive pumps.

  • flow rate — from 15 to 70 l/min
  • head — max. up to 8 m

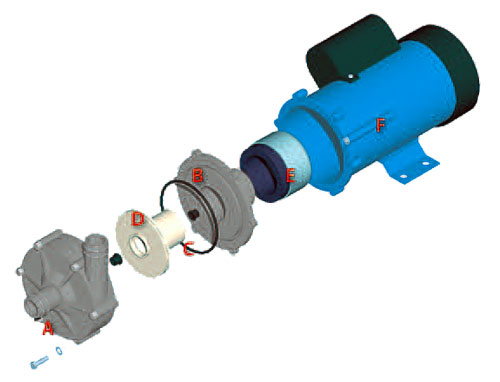

Magnetic coupling absolutely excludes using any seals of rotary parts. The design includes only one O-ring between spiral casing and rear housing.

A - SPIRAL CASING
B - REAR HOUSING
C - O-RING
D - IMPELLER
E - MAGNETIC DRIVE
F - ELECTRIC MOTOR

Using magnetic-drive pumps allows pumping of different liquids, including aggressive and highly-toxic ones, preventing them from entering into environment and unprotected pump systems in any amount.

ООО "Riverst" sells chemical hermetic magnetic-drive pumps of FMB series, which are used in food and chemical industry for pumping different neutral, chemically active, aggressive and highly flammable liquids.

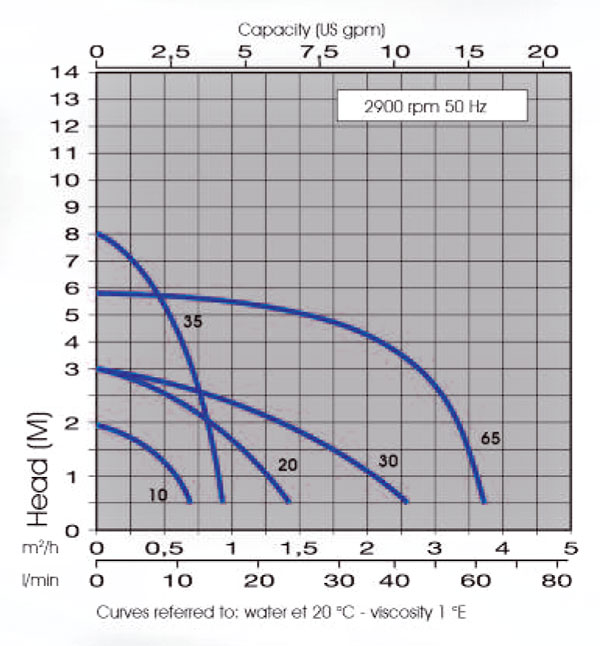

Performance diagram

Диаграммы производительности FMB

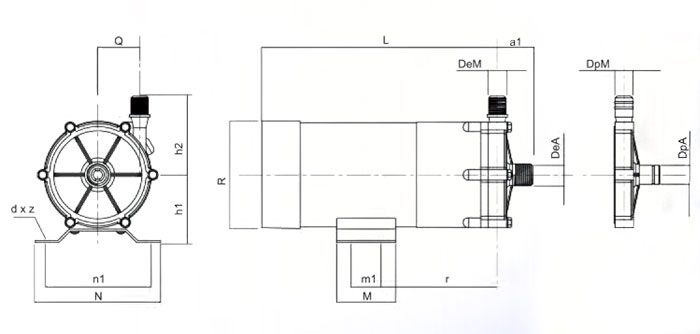

 Dimensions

FMB

10

20

30

35

65

a1

31

37

48

34

62

h1

45

55

60

60

67

h2

47

74

75

75

84

L

100

181

206

206

222

m1

16

30

40

40

40

M

30

50

64

64

68

n1

78

70

100

100

120

N

90

92

120

120

144

Q

17

30

32

40

45

r

46,5

75

94

94

115

R

71

90

90

90

115

d x z

Ø 5x4

Ø 6x4

Ø 8x4

Ø 8x4

Ø 8x4

DeA

-

3/4"

3/4"

1/2"

1"

DeM

-

3/4"

3/4"

3/8"

1"

DpA

14

18

20

18

26

DpM

14

17

20

18

26
