Air operated double diaphragm pumps.

Design of new double diaphragm pumps is based on air distribution system, diaphragm’s high technology, pumping chambers geometry and the valve system aiming at extending functionality, not only for pumping, but also for dosing.


Construction materials: PP, PVDF, ALLUMINIUM and AISI 316.


Fluimac Phoenix pumps

 P10 Diaphragm Pumps

насос P10

Connections 1/4" BSP
Max flow-rate 10 l/min
Max head 70m
Air connection 1/4" BSP



Диаграммы производительности насоса P10

 P20 Diaphragm Pumps

насос P20

Connections 3/8" BSP
Max flow-rate 20 l/min
Max head 70m
Air connection 1/4" BSP

Диаграммы производительности насоса P20

 P30 Diaphragm Pumps



насос P30

Connections 1/2" BSP
Max flow-rate 32 l/min
Max head 70m
Air connection 1/4" BSP

Диаграммы производительности насоса P30

 P50 Diaphragm Pumps

P50

Connections 1/2" BSP
Max flow-rate 50 l/min
Max head 70m
Air connection 3/8" BSP

Диаграммы производительности насоса P50

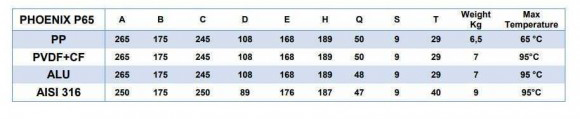

 P65 Diaphragm Pumps

насос P65

Connections 1/2" BSP
Max flow-rate 65 l/min
Max head 70m
Air connection 1/2" BSP

Диаграммы производительности насоса P65

 P100 Diaphragm Pumps

насос P100

Connections 3/4" BSP
Max flow-rate 100 l/min
Max head 70m
Air connection 1/2" BSP

Диаграммы производительности насоса P100



 P160 Diaphragm Pumps

насос P160

Connections 1" BSP
Max flow-rate 160 l/min
Max head 70m
Air connection 1/2" BSP

Диаграммы производительности насоса P160



 P250 Diaphragm Pumps

насос P250

Connections 1 1/4" BSP
Max flow-rate 250 l/min
Max head 70m
Air connection 1/2" BSP

Диаграммы производительности насоса P250



 P500 Diaphragm Pumps

насос P500

Connections DN40 (1 1/2 BSP)
Max flow-rate 500 l/min
Max head 70m
Air connection 3/4" BSP

Диаграммы производительности насоса P500



 P700 Diaphragm Pumps

насос P700

Connections DN50 (2" BSP)
Max flow-rate 680 l/min
Max head 70m
Air connection 3/4" BSP

Диаграммы производительности насоса P700
